Calibration Kits for CableEye Testers

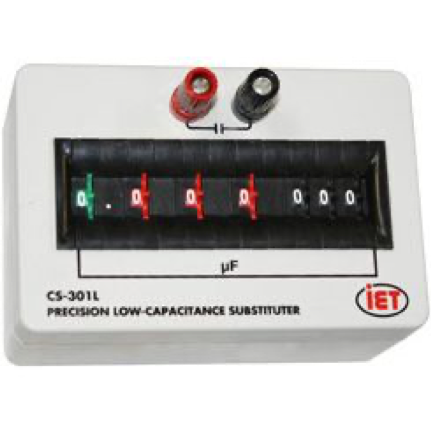

Precision Capacitance Decade Box

Item T717C

for CableEye Tester Calibration Kit 717SC

If your tester is equipped with capacitance measurement capability then, in addition to the Low Voltage Module Calibration Kit (Item 717SC) and other bench instruments noted here, you will also need a precision capacitance decade box that is calibrated to NIST/NMAS/UKA standards. We recommend the following or equivalent compatible third-party¹ device.

	Model IET CS-301L
Accuracy	±(1%+3 pF)
Decades	7
Range	0 - to 9.999999 µF
Resolution	1 pF
Components	1 - 900 pF: Mica 0.001 - 0.9 μF: Polypropylene 1 - 9 μF: Polyester 10 - 900 μF: Tantalum
Ratings	100 V
Residual	≤49 pF (≤7 pF/decade)
Test Conditions	1 kHz; 1 Vrms; 120 Hz for ≥10 μF, series model; 23ºC.
Physical Dims.	12 x 7.9 x 5.6 cm; 235 g (4.7 x 3.1 x 2.2 in; 8.3 oz.)
NIST Traceable Calibration Certificate	Included

¹Not sold by CAMI. CAMI does not provide technical support, repair, or warranty service for third-party products.

Kit Compatibility

Older calibration kits are not compatible with newer testers. Contact us or, if you are an international customer, your local distributor to verify whether your kit is still current. When purchasing a new tester, be sure to check whether a calibration kit upgrade is required for the new system.
