64-Pin Boardmount Sockets

Contents

Item 855 | Since 2017

Order Item 855 to replace worn connectors on CableEye CB interface fixture boards. You may order these directly from CAMI Research whether or not you own a CableEye tester.

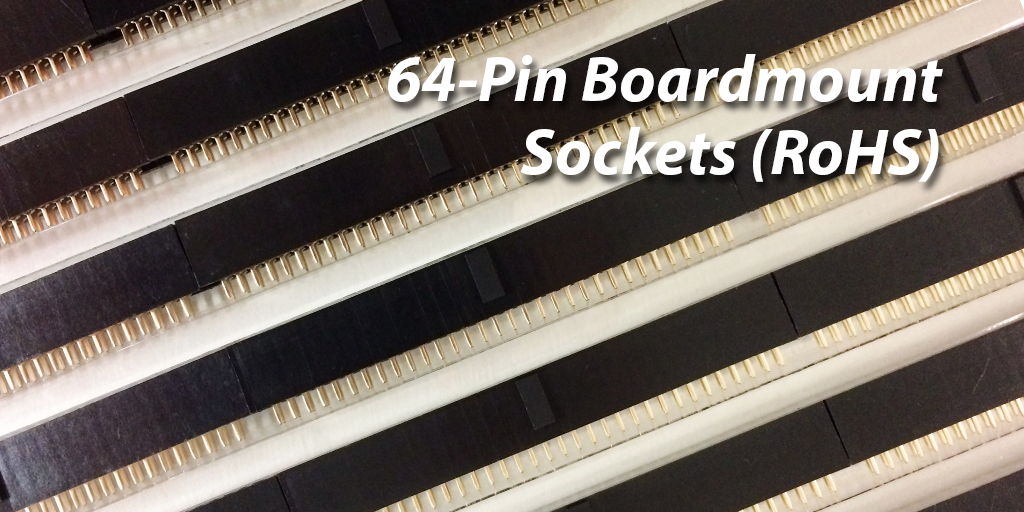

Since 2017, Item 855 represents the black boardmount socket described in detail on this page.

Item 855 | 1994 to 2017

Up to 2017, Item 855 represented the grey 3M 8564-4500PL 64-pin boardmount socket. This was used on CableEye interface fixtures from 1994 until the part was discontinued by 3M in February 2017.

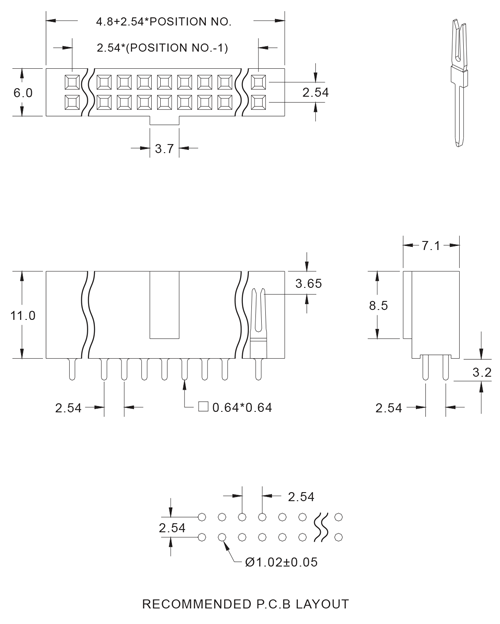

The replacement socket (black), described on this page, is even better than the 3M 8564-4500P in fit and high voltage qualities.

• Insulator: PBT, glass reinforced, rated UL 94V-0
• Contact: Brass
• Contact Plating: Gold Flash
• Pin Length: 3.2mm
• Current Rating: 1 A
• Contact Resistance: 30 mΩ max.
• Dielectric Withstanding Voltage: 500V AC for 1 min.
• Insulation Resistance: 3000 MΩ min.
• Operating Temperature: -40˚C to +105˚C
• RoHS Compliant

Item 855, 64-pin Boardmount Socket ....... 9.95 USD each

Orders by Purchase Order:
Provide three trade and a bank reference to set up Net 30 terms. Minimum order $50.00. Email or Fax your order; we will ship stocked items within two business days of receipt of order.

Orders by Credit Card:
We will take VISA/MasterCard/American Express if you prefer. Minimum order Qty 2. Call, email, or fax your order. We will ship stocked items within two business days of receipt of order.

CAMI Research Inc.
42 Nagog Park, Suite 115
Acton, MA 01720

Tel: (978) 266-2655

If you have technical or other questions, please contact Technical Support at the above numbers, or chat with us live by clicking on 'Live Chat' below.
