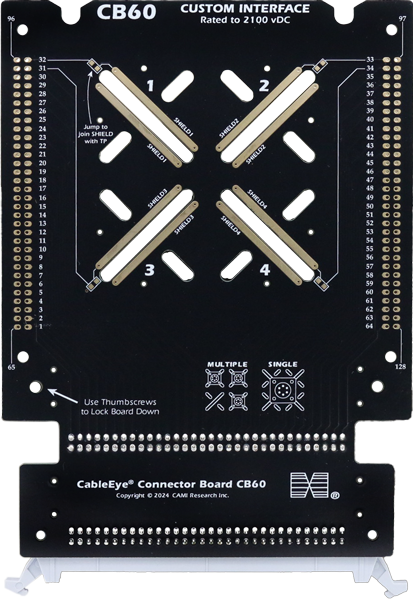

1 - Top View of CB60
2 - 64-pin Latch Headers Mounted to CB60
(not included)

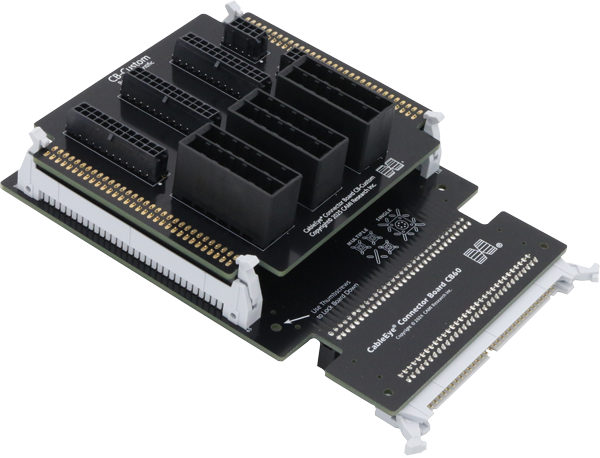

3 - Daughter Board Mounted on CB60

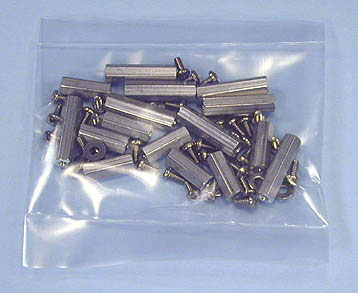

6 - Standoff Kit Supplied with the CB60 Set
This generic board, is a higher voltage-rated version of the CB30H. Like the CB30H, it accepts a wide range of circular connectors, rectangular connectors, bracket-mounted assemblies, adapter cables, and LIF test blocks. Mount your connectors using supplied standoffs and screws (see photo). Any panel-mount circular connector with four mounting holes fits the "X" pattern slots on this board. Mount up to four small circular connectors (mounting hole spacing less than 0.9"), or one large connector (mounting hole spacing less than 2.3"). Wire pins from the attached connector to labeled pads surrounding the board. Use the numerous small holes around the board for nylon lacing to hold wiring in place. Alternatively, mount dual-row headers of up to 64-pins to the right and left pad footprints, spaced on a 0.1" grid (see photo). Use these headers for a custom-designed daughter board that plugs into the CB60 (see photo) or for flat cables. Instead of a single 64-pin header, attach combinations of smaller headers that have a 0.1x0.1" footprint. A total of up to 128 test points can be accommodated per board.

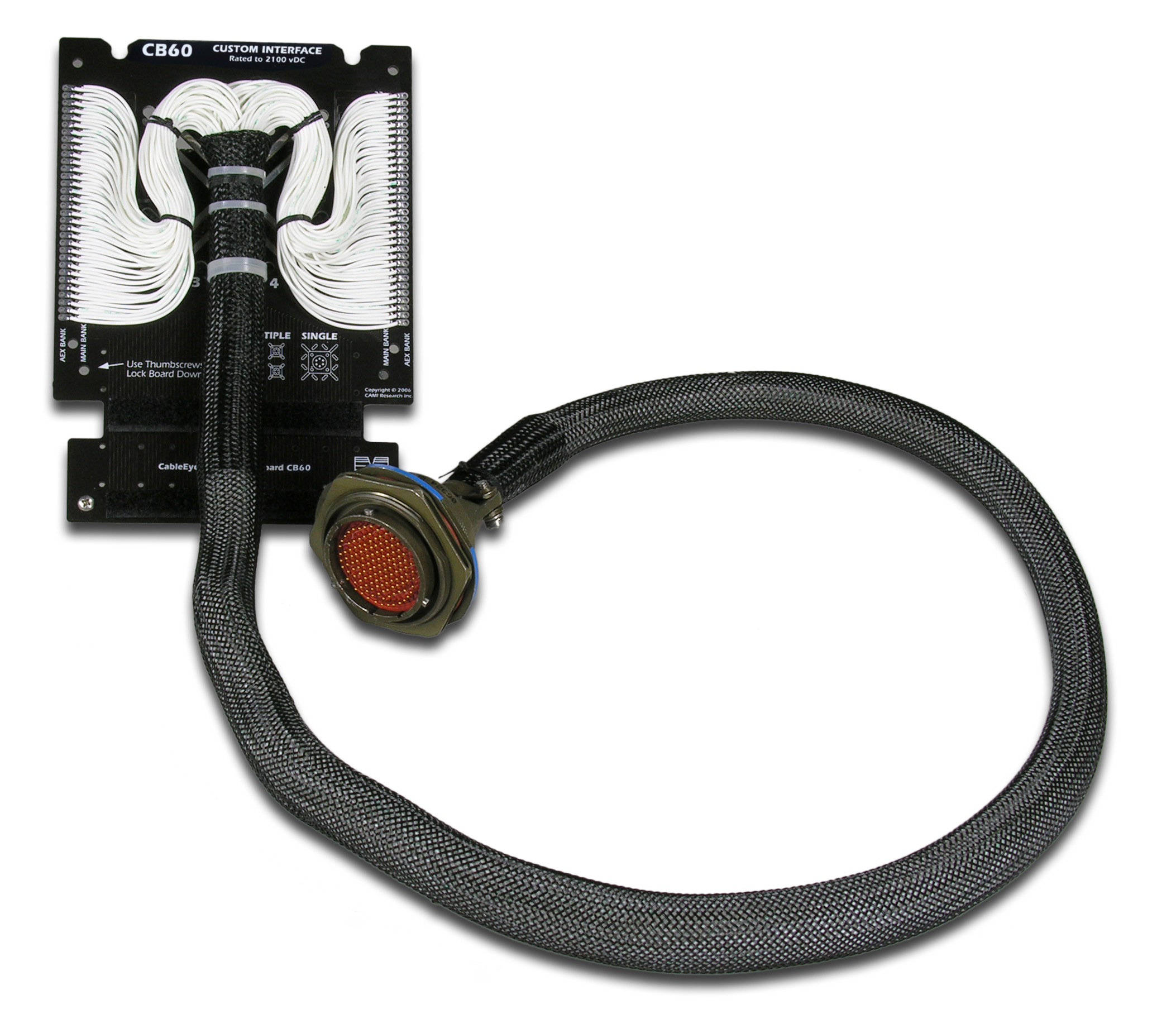

When the wiring is displayed, a generic dual-row header is shown for the connector. Use the optional PinMap™ fixture editor software (recommended for this board) to choose a better, connector-specific graphic from the CableEye connector library, and to assign custom pin labels. To create a graphic not yet in the connector library, use the Connector Designer ™ connector editor software. Use two CB60 boards together, or a CB60 in combination with any other CB board to accept any connector combination. Review the photos below for the setup options, or click to see photos of custom applications.
Requires a 256 test point tester.
Connectors Not Included: Customization Service Available (Item 899C).
1 Expansion Module Required: One (1).
2E Set of two boards with expander cable.
Rated for operation up to 2100 Vdc/ 1200 Vdc.
Can be certified for operation at the maximum rated voltage for a service fee (Item 626).
